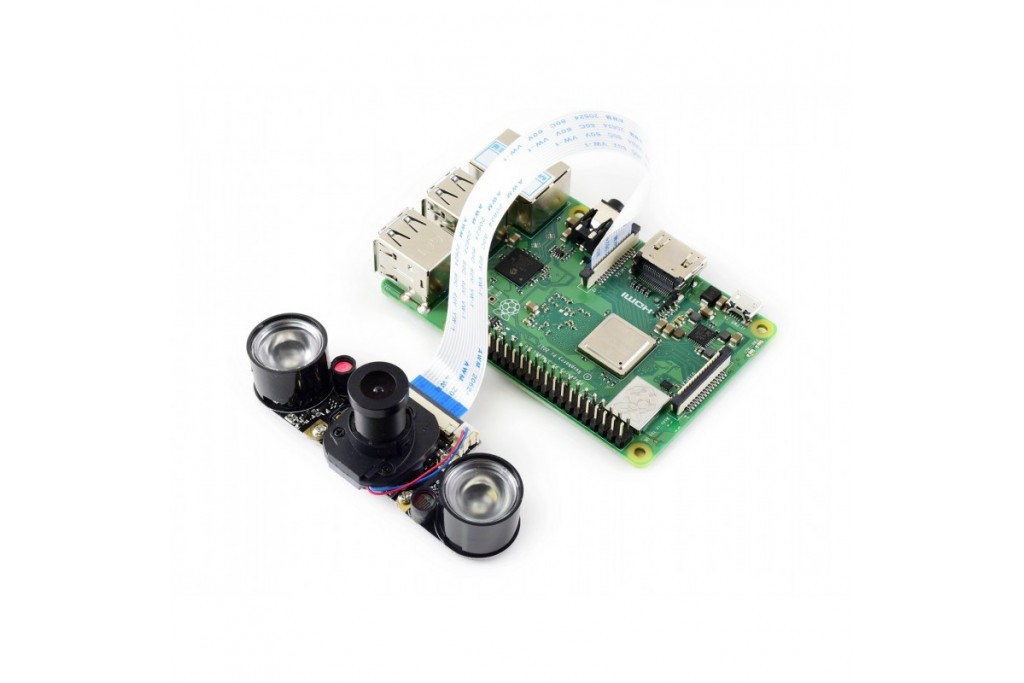

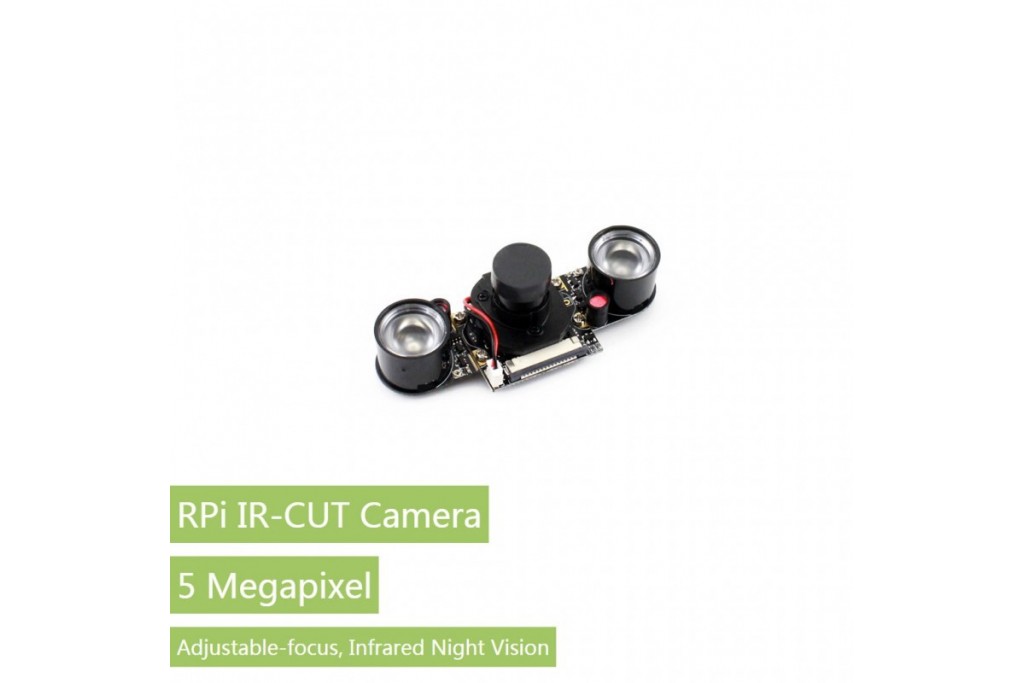

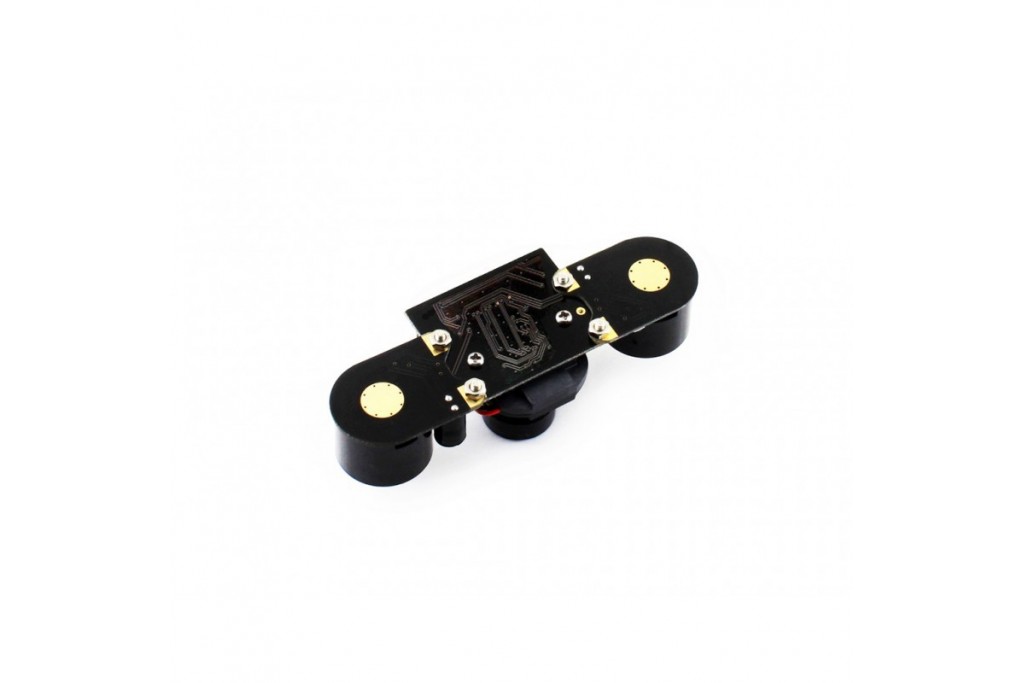

RPi IR-CUT Camera, Better Image in Both Day and Night

Features

• Raspberry Pi Camera, supports all revisions of the Pi
• Embedded removable IR-CUT filter, eliminating color distortion in the daylight
• Comes with infrared LED, supports night vision
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 1.8
  • Focal Length : 3.6mm
  • Angle of View (diagonal) : 75.7 degree
  • Sensor best resolution : 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension: 31mm × 32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera

Selection Guide

1. The recommendation is considered from sales report and cost performance.
2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH

PACKAGE CONTENT

Weight: 0.067 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

1. RPi IR-CUT Camera x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
