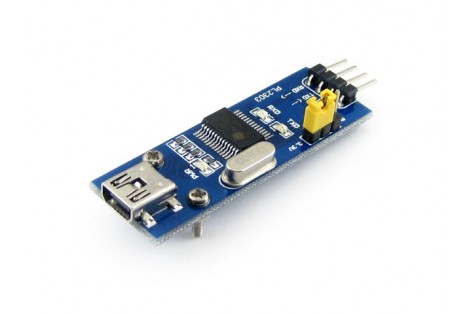

PL2303 USB UART Board (mini)

WSM0005

New product

More info

USB TO UART solution with USB mini-AB connector

Features

  • PL2303TA onboard (the latest device, compatible with PL2303HXA)
  • Supports windows XP/7/8/8.1/10/...
  • 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
  • 3 LEDs: TXD LED, RXD LED, POWER LED

How to Use

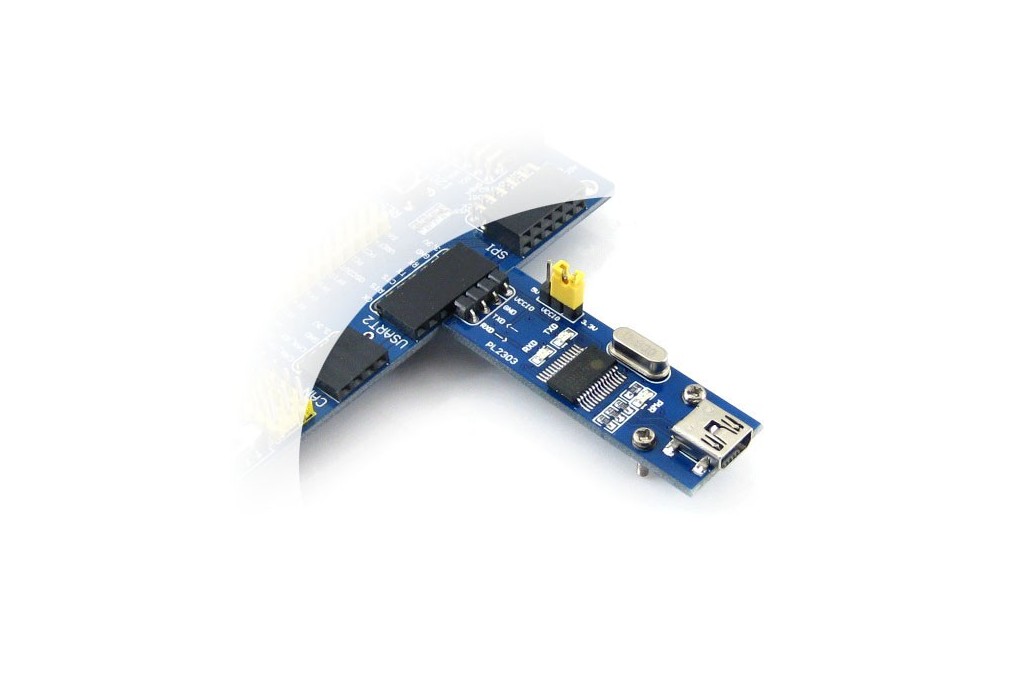

In the case of working with a MCU:

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

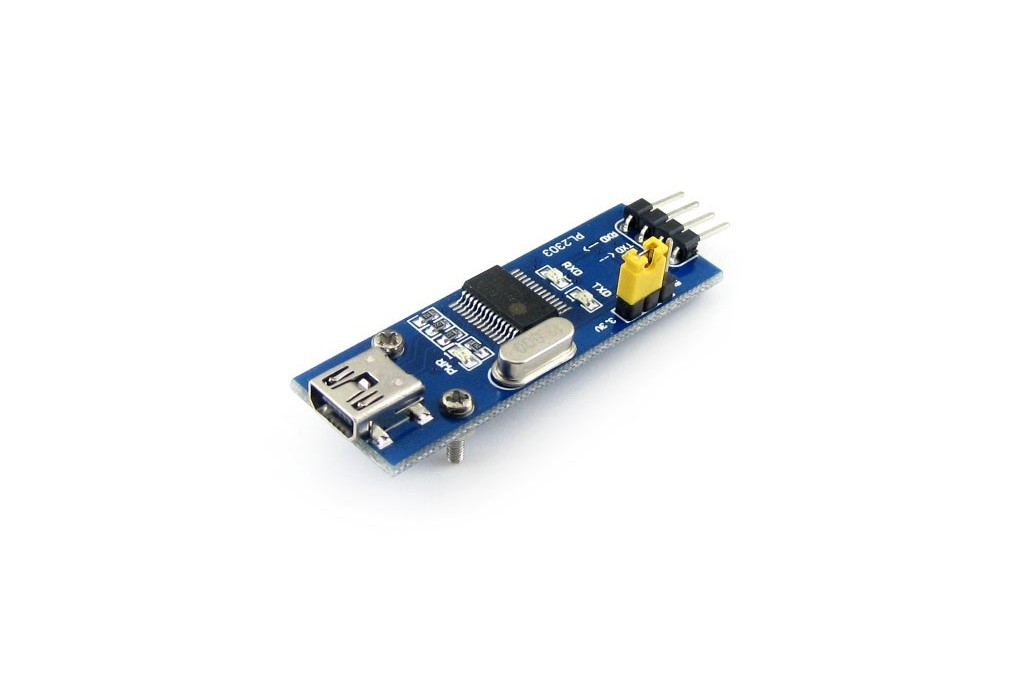

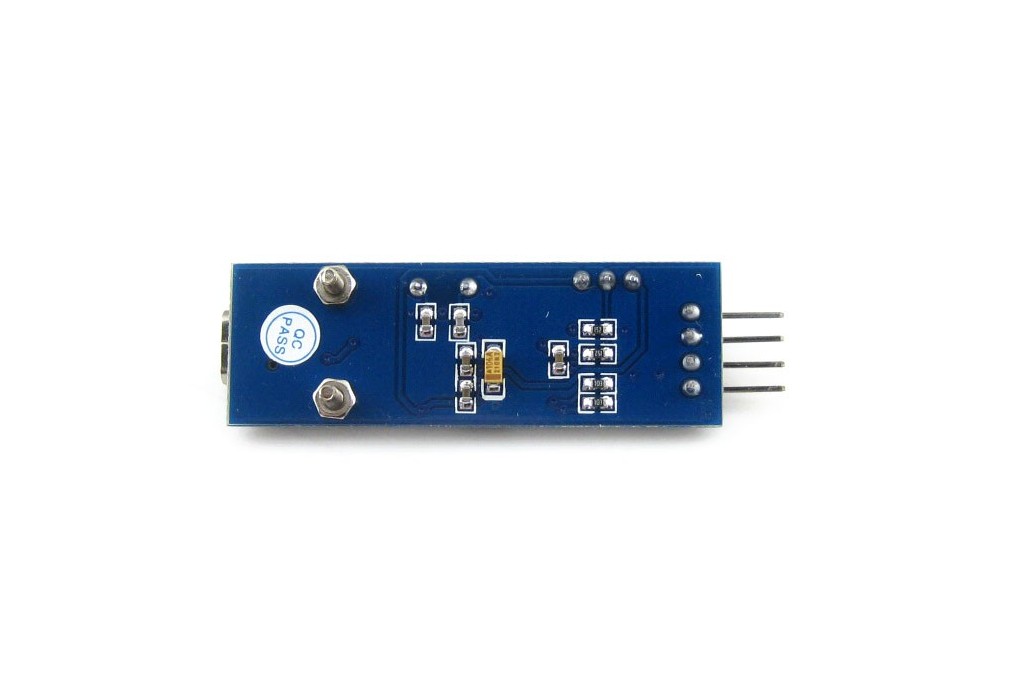

Photos

PL2303-USB-UART-Board-mini-2_180.jpgPL2303-USB-UART-Board-mini-3_180.jpgPL2303-USB-UART-Board-mini-4_180.jpgPL2303-USB-UART-Board-mini-5_180.jpg

Dimension


Development Resources

Wiki : www.waveshare.com/wiki/PL2303_USB_UART_Board_(mini)
