16 Characters * 4 Lines, Character LCD module, Black Character, Yellow Backlight, 5V For Logic Circuit

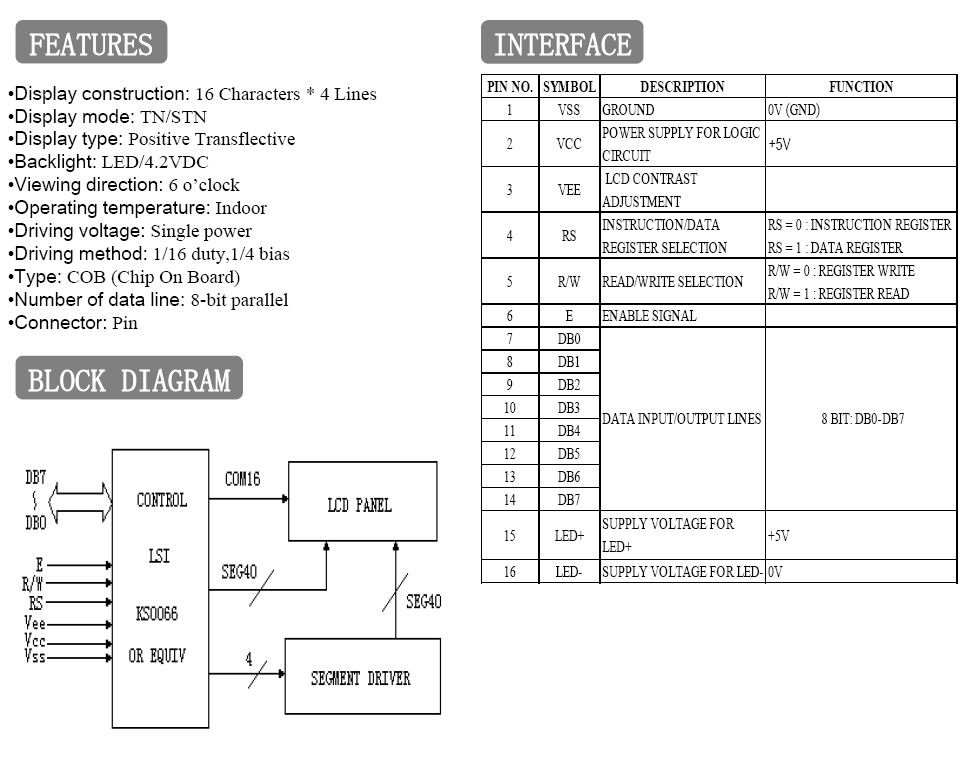

Features

Display construction	16 Characters * 4 Lines
Display mode	TN/STN
Display type	Positive Transflective
Backlight	LED/4.2VDC
Viewing direction	6 o'clock
Operating temperature	Indoor
Driving voltage	Single power
Driving method	1/16 duty,1/4 bias
Type	COB (Chip On Board)
Number of data line	8-bit parallel
Connector	Pin / ZEBRA

Key Parameters

Driver IC	KS0066 (compatible with HD44780)
Interface	Parallel
Backlight	Yellow
Character Color	Black
Character Set	ASCII
Dimension	87 * 60 * 13.5

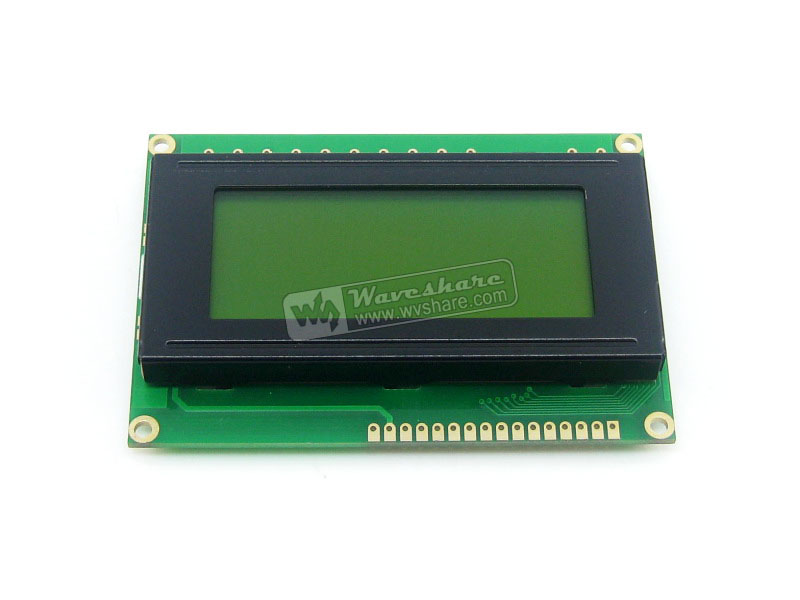

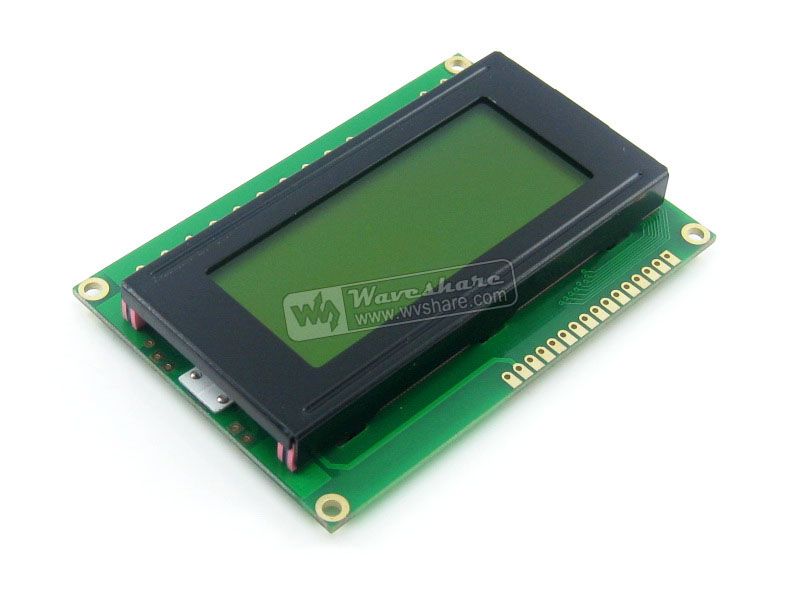

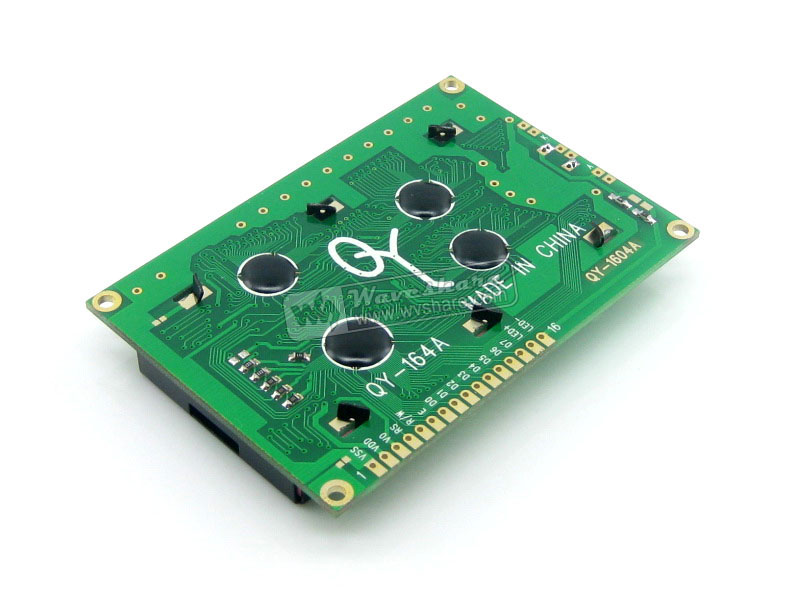

Photos

Interface

PIN NO.	SYMBOL	DESCRIPTION	FUNCTION
1	VSS	Ground	0V (GND)
2	VCC	Power Supply For Logic Circuit	+5V
3	VEE	LCD Contrast Adjustment
4	RS	Instruction/Data Register Selection	RS = 0 : Instruction Register RS = 1 : Data Register
5	R/W	Read/Write Selection	R/W = 0 : Register Write R/W = 1 : Register Read
6	E	Enable Signal
7	DB0	Data Input/Output Lines	8 BIT: DB0-DB7
8	DB1
9	DB2
10	DB3
11	DB4
12	DB5
13	DB6
14	DB7
15	LED+	Supply Voltage For LED+	+5V
16	LED-	Supply Voltage For LED-	0V

External Dimension

LCD1604 external dimension

Datasheet Download

HD44780.pdf
