Overview

The CC1101 RF Board is an accessory board that offers 433M wireless function. It features an onboard CC1101 chip and uses SPI interface for communication. The board is ideal for applications such as wireless data transmission, multicast, and frequency-hopping communication.

The CC1101 RF Board integrates only ONE CC1101, while at least TWO CC1101 are required to establish communication with each other.

The CC1101 RF Board is designed to use 1.9V～3.6V low voltage power supply only.

The pinheader pitch is 1.27mm.

Features

CC1101, SPI interface

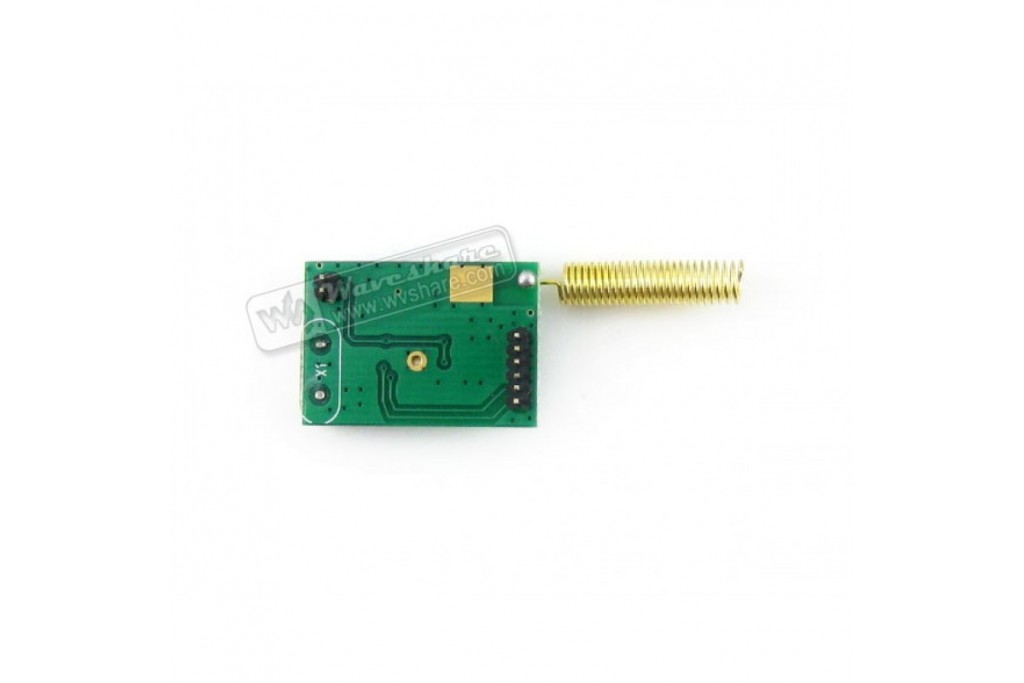

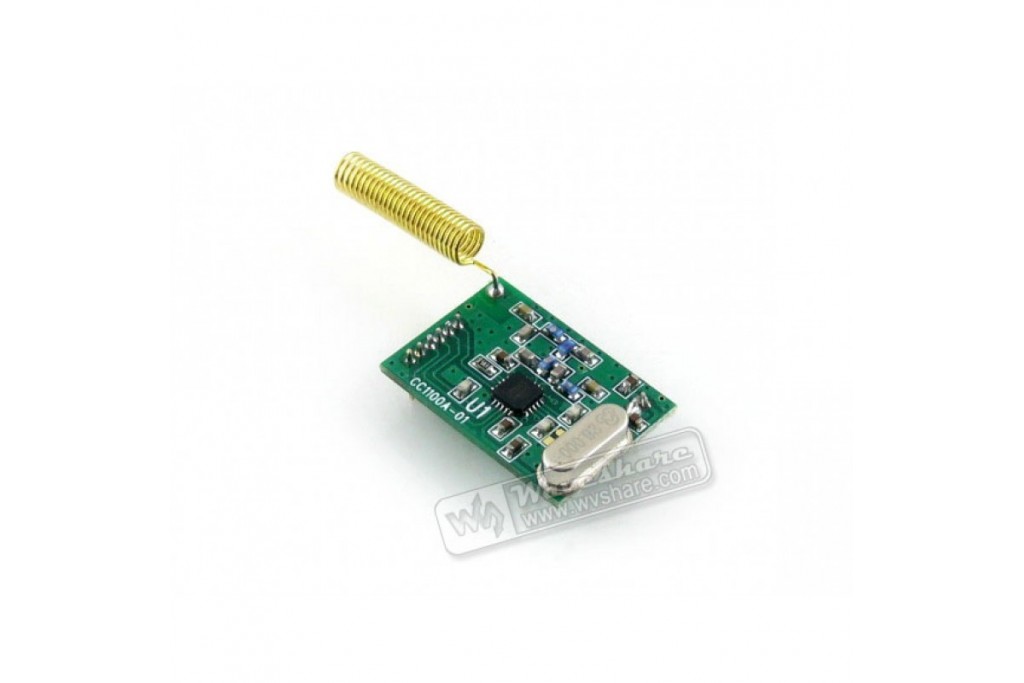

Photos

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/CC1101_RF_Board
