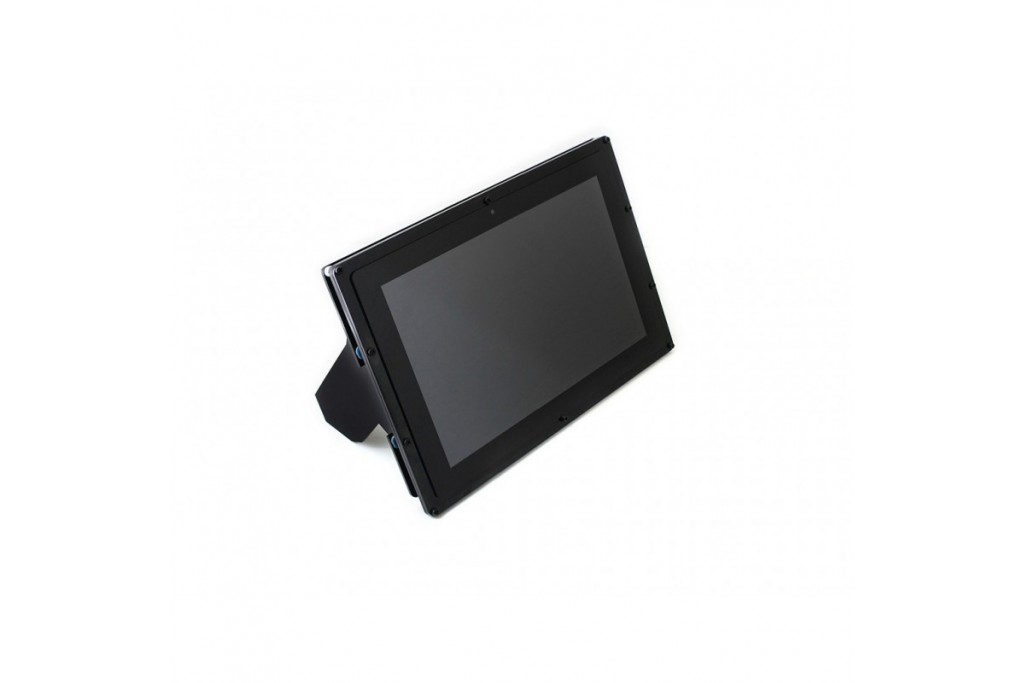

10.1inch HDMI LCD (B) (with case), 1280×800, IPS

WSM0092

New product

Remark: Not include free shipping!

More details

More info

The LCD and Control Board

  • IPS screen,1280×800 high resolution
  • Capacitive touch control, supports up to ten-points touch
  • When works with Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
  • When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
  • Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
  • Supports BB Black, comes with Angstrom image
  • HDMI interface for displaying, USB interface for touch control
  • Back light control to lower power consumption

The Case

  • Material : high quality black Acrylic
  • Comes with back holder, 30°/45° tilt angle
  • Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, BB Black, Banana Pi

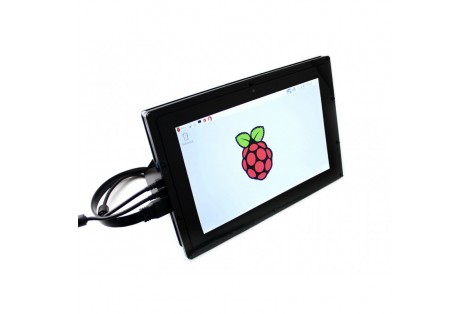

Photos

10.1inch-HDMI-LCD-B-with-Holder-1_160.jp10.1inch-HDMI-LCD-B-with-Holder-2_160.jp10.1inch-HDMI-LCD-B-with-Holder-assemble10.1inch-HDMI-LCD-B-with-Holder-4_160.jp10.1inch-HDMI-LCD-B-with-Holder-5_160.jp10.1inch-HDMI-LCD-B-with-Holder-6_160.jp10.1inch-HDMI-LCD-B-with-Holder-7_160.jp10.1inch-HDMI-LCD-B-with-Holder-8_160.jp10.1inch-HDMI-LCD-B-with-Holder-9_160.jp10.1inch-HDMI-LCD-B-with-Holder-10_160.j10.1inch-HDMI-LCD-B-with-Holder-11_160.j10.1inch-HDMI-LCD-B-with-Holder-12_160.j

Note: Raspberry Pi in the photos is NOT included.

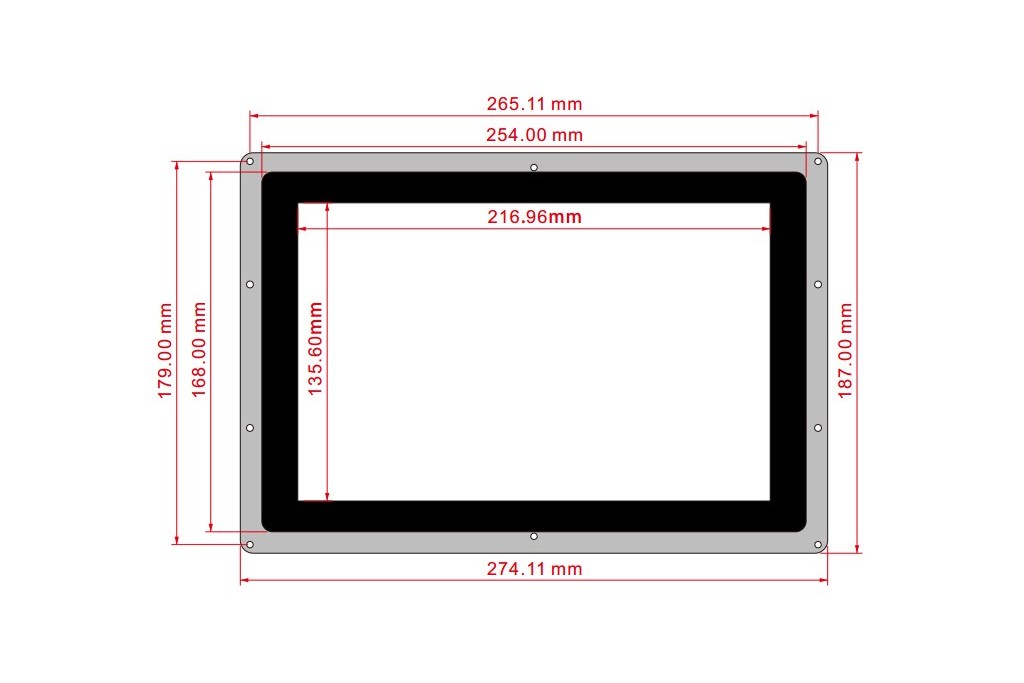

External Dimension

10.1inch-HDMI-LCD-B-with-Holder-dimension

Development Resources

How to install: instruction

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case)

Anti-Piracy

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy
(Click to enlarge)

Selection Guide

Part NumberResolutionLCD InterfaceTouch Panel InterfaceFor use withDimension (mm)Touch Panel TypeHow you feelFeature
3.2inch RPi LCD (B) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ Low cost
3.5inch RPi LCD (A) 320x480 I/O I/O Pi As the Pi 3B Resistive ★★★ Cost effective
4inch RPi LCD (A) 320x480 I/O I/O Pi 94 × 61 Resistive ★★★☆ IPS screen
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive ★★★★ Cost effective
5inch HDMI LCD 800x480 HDMI I/O Pi 121 x 78 Resistive ★★★★ Low cost
5inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 121 x 76 Resistive ★★★★ Supports various systems
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive ★★★★☆ IPS screen
7inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★☆ Supports various systems
7inch HDMI LCD (C) 1024x600 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★★ IPS screen, Supports various systems
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive ★★★★☆ Cost effective
10.1inch HDMI LCD (H) 1024x600 HDMI USB Not only Pi 257 x 162 Capacitive ★★★★☆ Supports various systems
10.1inch HDMI LCD (B) 1280x800 HDMI USB Not only Pi 274 × 187 Capacitive ★★★★★ IPS screen, Supports various systems

Note :
Pi 3B = Raspberry Pi 3 Model B
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

Have a look :
RPi LCD Comparing
